Configuration Variables

Variables are used to define configuration parameters which can be applied to various entities. Such as Servers, Commands, Files, and File Templates.

Danger

Storing sensitive data (eg GitHub tokens) in variable values may expose that data in command preview and logs. Use Secrets for storing such data instead.

Access Rules

Group	Action	Condition
User	R	Access level is "User"
Manager	R	Access level is "Manager" or less
Manager	CRU	Access level is "Manager" and record is created by user
Root	CRUD	Any record

Info

CRUD stands for Create, Read, Update, Delete.

Variable Configuration

Variables are located under the Cetmix Tower > Settings > Variables menu.

Fields

Field	Description
Name	A readable name for the variable.
Reference	A unique identifier for addressing the variable in conditions and expressions. Also used for YAML export/import. Leave blank to auto-generate based on the name.
Access Level	Minimum access level required to access this Variable.
Type	Variable type.
Validation Pattern	Regex pattern to validate the variable value.
Validation Message	Custom message to display if the variable value validation fails. The default message will be used if not set.
Note	Additional notes or comments about the variable.

Tabs

Tab	Description
Values	Values of the variable. Check Variable Applicability for more details.
Value Modifier	Python code used to modify the variable value. Check Value Modifier for more details.

Buttons

There are several clickable smart buttons located in the top of the form.

Button	Description
Values	Values of the variable. Opens value list when clicked.
Commands	Commands that use this variable. Opens command list when clicked.
Files	Files that use this variable. Opens file list when clicked.
File Templates	File Templates that use this variable. Opens file template list when clicked.
Used in Values	Another variables that use this variable in their values. Opens variable list when clicked.

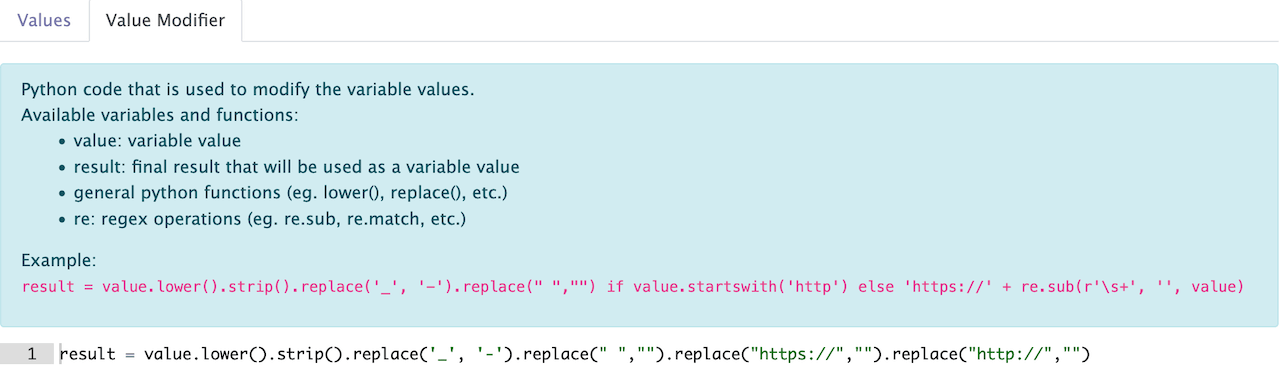

Value Modifier

Python code that is used to modify the variable values.

Available variables and functions:

• value: variable value
• result: final result that will be used as a variable value
• general python functions (eg. lower(), replace(), etc.)
• re: regex operations (eg. re.sub, re.match, etc.)

Example:

if value.startswith('http'):
    result = value.lower().strip().replace('_', '-').replace(" ","")
else:
    result = 'https://' + re.sub(r'\s+', '', value)

Info

Value modifier is applied after the variable value is rendered in the code. So it doesn't affect the way value is displayed in the UI.

Variable Types

Type	Description
String	A string of characters.
Options	Pre-defined list of values. Name is displayed in the dropdown. Value is assigned as a variable value.

Variable Applicability

Variables can be used in the following entities:

• Commands

Used for rendering command code:

ls -lh {{ file_store_location }}

url = "https://api.hetzner.cloud/"+{{ hetzner_api_version }}+"/servers"

• Files and File Templates

Used for rendering file content:

FROM {{ os_image }}:{{ os_version }}
ARG ODOO_VERSION={{ odoo_default_version }}

• Flight Plans Line Actions

Used for to set the corresponding Server configuration value when this action is triggered:

• Other Variables

Used to compose complex values that can include other variables:

Variable: Root Location
Value: /opt/cetmix_tower

Variable: Log File Location
Value: {{ root_location }}/logs

Variable Values

Variable Value Access Rules

Variables values access rules can be configured separately for each variable value. By default, each variable value inherits access rules from the variable.

Warning

Variable value access level must be same or higher than the variable access level.
For example, if a variable has access level Manager, its values can have access level Manager or Root but can't have access level User.

Group	Action	Condition
User	R	Access level is "User" and value is global
User	R	Access level is "User" and user is added in "Users" in related Server
User	R	Access level is "User" and user is added in "Users" in related Flight Plan
User	R	Access level is "User" and user is added in "Users" in related Flight Plan Server
Manager	R	Access level is "Manager" or less and value is global
Manager	R	Access level is "Manager" or less and user is added in "Users" or "Managers" in related Server
Manager	R	Access level is "Manager" or less and user is added in "Users" or "Managers" in related Server Template
Manager	R	Access level is "Manager" or less and user is added in "Users" or "Managers" in related Flight Plan
Manager	R	Access level is "Manager" or less and user is added in "Users" or "Managers" in Server the Flight Plan Action belongs to
Manager	CRU	Access level is "Manager" or less and user is added in "Managers" in related Server
Manager	CRU	Access level is "Manager" or less and user is added in "Managers" in related Server Template
Manager	CRU	Access level is "Manager" or less and user is added in "Managers" in related Flight Plan
Manager	CRU	Access level is "Manager" or less and user is added in "Managers" in Server the Flight Plan Action belongs to
Manager	CRUD	Access level is "Manager" or less and user is added in "Managers" in related Server and record is created by user
Manager	CRUD	Access level is "Manager" or less and user is added in "Managers" in related Server Template and record is created by user
Manager	CRUD	Access level is "Manager" or less and user is added in "Managers" in related Flight Plan and record is created by user
Manager	CRUD	Access level is "Manager" or less and user is added in "Managers" in Server the Flight Plan Action belongs to and record is created by user
Root	CRUD	Any record

Info

Read+Write+Create+Delete stands for Read, Write, Create, Delete.

Variable Value Rendering

Cetmix Tower uses jinja2 for variable rendering. This means that any jinja2 supported expressions can be used.

Here is an example of a command with if else statements:

docker run -d -p {{ odoo_port }}:8069 \
{% if  odoo_longpolling_port and odoo_longpolling_port != '0' and odoo_workers and odoo_workers != '0' %}
    -p {{ odoo_longpolling_port }}:8072 \
{% endif %}
    -v {{ odoo_data }}:/var/lib/odoo \
{% if  odoo_config_location %}
    -v {{ odoo_config_location }}:/etc/odoo \
{% endif %}

Variable Rendering Modes

There are two rendering modes available:

• Generic (or ssh) mode. This is the default mode. It is used for rendering variables in SSH Commands, Files and File Templates.
• Pythonic mode. This mode is used for rendering variables in Commands that run Python code.

Let use the following code as example:

current_branch={{ branch }}
current_version={{ package_version }}
need_update={{ update_available }}

where branch is main, package_version is 0.12 and update_available is False

Generic Mode

Default mode which renders variable values "as is". It is done in order to keep compatibility with any code interpreter which may be used to run a command. The code from example will be rendered the following way:

current_branch=main
current_version=0.12
need_update=False

Pythonic Mode

This mode is used in commands that run Python code (Action: Execute Python code). In this mode all variable values except Boolean and None are enclosed in double quotes. The code from example will be rendered the following way:

current_branch="main"
current_version="0.12"
need_update=False

The tower System Variable

The special tower variable can be used to access some system parameters and helper tools:

Server properties

• tower.server.name Current server name
• tower.server.reference Current server reference
• tower.server.username Current server SSH Username​
• tower.server.partner_name Current server partner name
• tower.server.ipv4 Current server IPv4 Address​
• tower.server.ipv6 Current server IPv6 Address​
• tower.server.status Current server status
• tower.server.os Current server operating system
• tower.server.url Current server URL

Helper tools

• tower.tools.uuid Generates a random UUID4
• tower.tools.today Current date, eg 2025-02-28 (default format)
• tower.tools.now Current date time, eg 2025-02-28 21:58:31 (default format)
• tower.tools.today_underscore Current date with underscores as separators, eg 2025_02_28
• tower.tools.now_underscore Current date time with underscores as separators, eg 2025_02_28_21_58_31

Warning

Do not redefine the tower variable unless you really need that on purpose.

YAML Format Specification

Variable

String type Variable

cetmix_tower_model: variable
access_level: manager  # Access level required to access the variable. Possible values: user, manager, root
reference: instance_root  # Unique identifier for addressing the variable in conditions and expressions. Leave blank to auto-generate based on the name.
name: Instance Root  # Readable name of the variable
variable_type: s  # Variable type. Possible values: s for string, o for options
option_ids: false  # List of Options or Option objects. Used only for the 'o' variable type.
applied_expression: result = value.lower().strip().replace('_', '-').replace(" ","").replace("https://","").replace("http://","")  # Python code to modify the variable value
validation_pattern: ^((\/|^)([\w\-\.]*|\{\{[^{}]+\}\}|{%\s*(if|else|endif)\b[^%]*?%\})+)+$  # Regex pattern to validate the variable value
validation_message: Must be a valid path. Can include variables.  # Custom message to display if the variable value validation fails. The default message will be used if not set.
note: Root location of the instance files.  # Additional notes or comments about the variable.

Options type Variable

cetmix_tower_model: variable
access_level: manager  # Access level required to access the variable. Possible values: user, manager, root
reference: odoo_version  # Unique identifier for addressing the variable in conditions and expressions. Leave blank to auto-generate based on the name.
name: Odoo Version  # Readable name of the variable
variable_type: o  # Variable type. Possible values: "s" for string, "o" for options
option_ids: # List of Options or Option objects. Used only for the "o" variable type.
- odoo_version_variable_option_8  # Option reference or Option object.
- odoo_version_variable_option_7  # Option reference or Option object.
- odoo_version_variable_option_6  # Option reference or Option object.
- odoo_version_variable_option_5  # Option reference or Option object.
- odoo_version_variable_option_4  # Option reference or Option object.
- odoo_version_variable_option_3  # Option reference or Option object.
applied_expression: false  # Python code to modify the variable value
validation_pattern: false  # Regex pattern to validate the variable value
validation_message: false  # Custom message to display if the variable value validation fails. The default message will be used if not set.
note: Odoo version variable

Variable Option

cetmix_tower_model: variable_option
reference: odoo_version_variable_option_8  # Unique identifier for addressing the variable in conditions and expressions. Leave blank to auto-generate based on the name.
sequence: 10  # Sequence of the option. Used to sort the options. Lower values are displayed first.
access_level: manager  # Access level required to access the variable. Possible values: user, manager, root
name: 'Odoo 18.0'  # Readable name of the option
value_char: '18.0'  # Value of the option

Variable Value

cetmix_tower_model: variable_value
reference: instance_root_variable_value_1_8  # Unique identifier for addressing the variable in conditions and expressions. Leave blank to auto-generate based on the name.
access_level: root  # Access level required to access the variable. Possible values: user, manager, root
variable_id: instance_root  # Variable reference or Variable object. Variable the value belongs to.
variable_ids: # List of Variables or Variable objects. Variables used in the variable value.
- tower_root  # Variable reference or Variable object.
value_char: {{ tower_root }}/odoo  # Value of the option
required: true  # Boolean. If true, the variable value is required. Used only in Server Templates.

Please refer to the General YAML Format Specification for more details.
